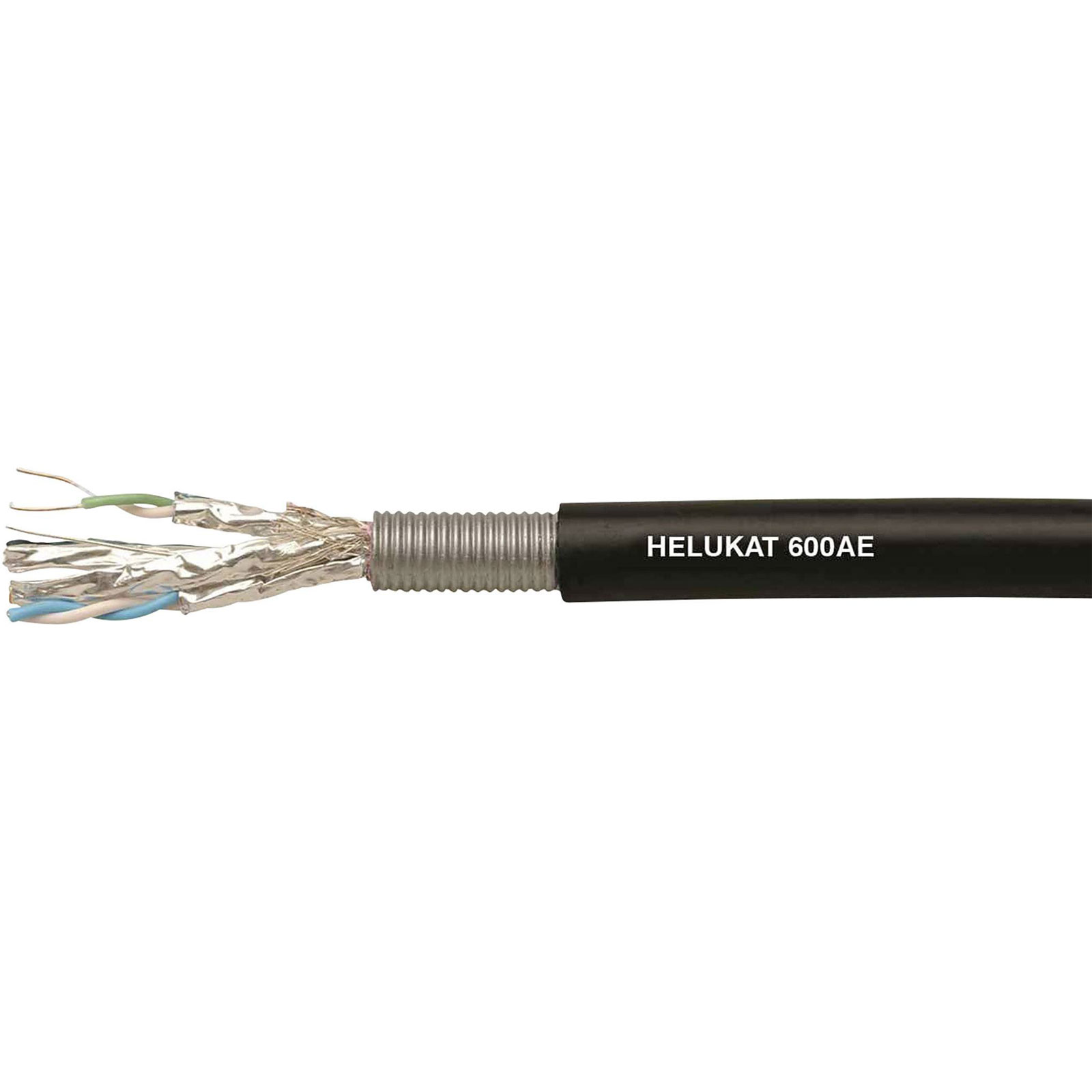

The Helukabel 802168 Ethernet cable is an armoured CAT 7e cable with S/FTP shielding, featuring a conductor size of 0.258 mm², ideal for high-speed data transmission. Its robust design makes it suitable for industrial environments requiring reliable network connections. Typical applications include data centres, computer networks, and telecommunications infrastructure.
| Type |
Ethernet cable |
| Cable type |
HELUKAT 600 AE |
| Cross section |
4 x 2 x 0.258 mm² |
| Cross section (each core) |
0.258mm² |
| Factory colour |
Black |
| Halogen-free |
No |
| Insulation material |
PE |
| Manufacturer part # |
802168 |
| Max. frequency |
1000MHz |
| Max. length sold by the metre |
100m |
| Max. temperature range (fixed installation) |
70°C |
| Min. temperature range (fixed installation) |
-45°C |
| Misc Attribute |
HELUKAT600 AE S/FTP FRNC/PE |
| No. of leads |
8 |
| Outside Ø |
12mm |
| Packaged |
No |
| Shielding |
S/FTP |
| Sold per metre |
Yes |
| Specification |
CAT 7e |
| Standards |
In accordance with ISO/IEC 11801, in accordance with EN 50173, according to EIA/TIA 568-A, Category 7e |
| Twisted pair cabling (part 1) |
Yes (1) |
