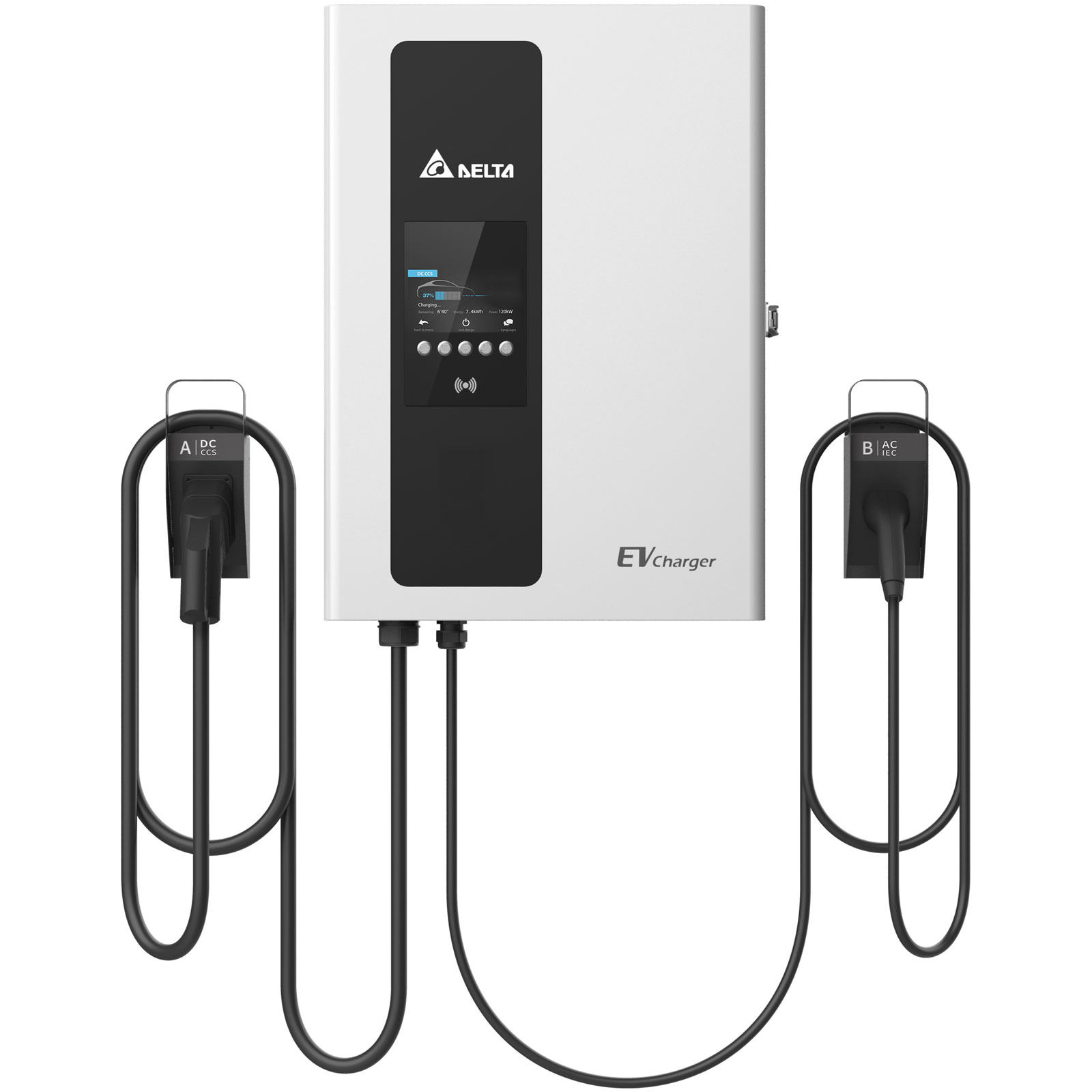

This Delta 50kW DC twin tethered charger provides high-efficiency charging that is suitable for a range of sites such as roadside parking, car parks, shopping centres, commercial and office buildings and EV fleet charging stations.
This unit is OCPP-compatible enabling easy backend integration for capabilities including user identification, remote monitoring, and system control.
The small footprint and compact wall mountable or pedestal design has a thickness of only 25cm optimising site design and layout.
| 4G | No |
|---|---|
| Bluetooth | No |
| Charging Outlet Type | CCS |
| Colour | White |
| Dimensions (H x W x D) | 650 x 900 x 250mm |
| Display | 7" LCD |
| Ethernet (RJ45) | Yes |
| IK Rating | IK10 |
| IP rating | IP55 |
| Maximum Current | 125A |
| Mounting | Wall or Pedestal |
| Nominal Power | 50kW |
| Number of Output Sockets | 2 |
| OCPP 1.6J | Yes |
| RFID | No |
| Supply Phase | Three |
| Supply Voltage | 400V |
| Tethered | Yes |
| Tethered Cable Length | 4m |
| Type | DC Chargepoint |
| Warranty | 12 Months |
| Weight | 102kg |
| WiFi | No |
